Billing Address Component

This is an optional component. Integrating it is not required to achieve full functionality — you can skip it entirely by providing a pre-filled com.accesspaysuite.mobilesdk.data.common.BillingAddress.

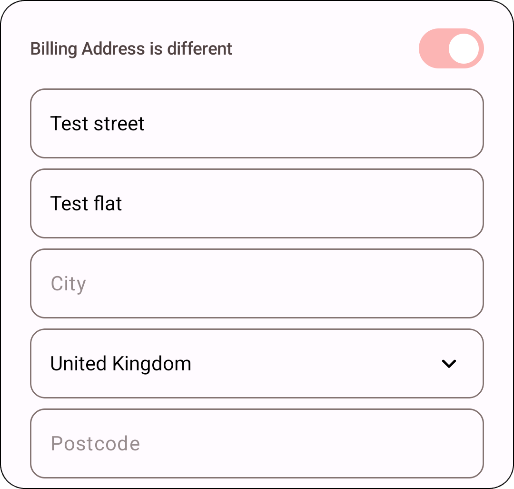

The BillingAddressComponent is a Composable function used to render a billing address form. It provides various parameters to customise the appearance and behaviour of the component.

Parameters

Parameter	Description
`modifier`	The modifier to apply to the layout.
`fontSize`	The font size of the text in the component.
`fontWeight`	The font weight of the text in the component.
`borderSize`	The size of the border around the component.
`borderCornerRadius`	The corner radius of the border.
`borderColor`	The colour of the border.
`defaultCountryCode`	The default country code for the address.
`useDropdown`	Whether to use a dropdown for selecting the country.
`showAddressLine2`	Whether to show the second line of the address.
`showAddressLine3`	Whether to show the third line of the address.
`showAddressLine4`	Whether to show the fourth line of the address.
`skipCheckboxUI`	Skip the checkbox UI. Adds a checkbox to enable the component’s control of the billing address if it differs from the one in `defaultAddress`.
`defaultAddress`	The default billing address.
`onAddressFilled`	A callback function called when the address is filled.
`isOutlined`	Whether the component should be outlined.

This renders a billing address form with the specified customisation options. For uses other than Compose you can use BillingAddressState to define its styling.

Example usage

Compose Multiplatform

Kotlin

BillingAddressComponent(
  modifier = Modifier,
  fontSize = 14.sp,
  fontWeight = ComponentFontWeight.NORMAL,
  borderSize = 1.dp,
  borderCornerRadius = 4.dp,
  borderColor = Color.Gray,
  defaultCountryCode = "GBR",
  useDropdown = false,
  showAddressLine2 = true,
  showAddressLine3 = false,
  showAddressLine4 = false,
  skipCheckboxUI = false,
  defaultAddress = null,
  onAddressFilled = { address ->
      // Handle the filled address
  },
  isOutlined = true,
  lightColorScheme = lightColorScheme(),
  darkColorScheme = lightColorScheme()
)

Android View

XML

<com.accesspaysuite.mobilesdk.ui.billing.BillingAddressView
  android:id="@+id/billingAddressView"
  android:layout_width="match_parent"
  android:layout_height="wrap_content" />

Kotlin

val billingAddressView = findViewById<BillingAddressView>(R.id.billingAddressView)
billingAddressView.init(state = BillingAddressState())

iOS

Create the controller representable

Swift

import SwiftUI
import mobilesdk

struct BillingAddressControllerRepresentable: UIViewControllerRepresentable {
  @Binding var state: BillingAddressState

  init(state: Binding<BillingAddressState>) {
      self._state = state
  }

  func makeUIViewController(context: Context) -> UIViewController {
      return BillingAddressController().make()
  }

  func updateUIViewController(_ uiViewController: UIViewController, context: Context) {
      BillingAddressController().update(state: state)
  }
}

Create the billing address view

Swift

import SwiftUI
import mobilesdk

struct BillingAddress: View {

  @Binding var state: BillingAddressState

  init(state: Binding<BillingAddressState>) {
      self._state = state
  }

  var body: some View {
      BillingAddressControllerRepresentable(
          state: $state
      )
      .ignoresSafeArea(.keyboard)
      .onTapGesture {
          UIApplication.shared.sendAction(#selector(UIResponder.resignFirstResponder), to: nil, from: nil, for: nil)
      }
  }
}

Use the billing address view

Swift

import SwiftUI
import mobilesdk

struct PaymentView: View {

  @State private var state = BillingAddressState()

  var body: some View {
      BillingAddress(
          state: $state
      )
  }
}

The BillingAddress data class

Property	Description
`line1`	(Required) Line 1 of the customer’s billing address.
`line2`	(Optional) Line 2 of the customer’s billing address.
`line3`	(Optional) Line 3 of the customer’s billing address.
`line4`	(Optional) Line 4 of the customer’s billing address.
`city`	(Required) City of the customer’s billing address.
`region`	(Required) Region of the customer’s billing address.
`postcode`	(Required) Postcode of the customer’s billing address.
`countryCode`	(Required) The three-character ISO-3166-1 code for the customer’s billing address country.
`email`	(Optional) Email address of the customer.

Kotlin

/**
* # Billing Address
*
* > The billing address of the Customer. Will be used for AVS checks. We'll save the billing
* > address when the customer makes their first payment.
* > Providing a billing address for subsequent payments will update the address we've saved if
* > you send new, empty or no values for each field.
*
*/
@Parcelize
@Serializable
data class BillingAddress(
  var line1: String? = null,
  var line2: String? = null,
  var line3: String? = null,
  var line4: String? = null,
  var city: String? = null,
  var region: String? = null,
  var postcode: String? = null,
  var countryCode: String? = null,
  var email: String? = null
)
